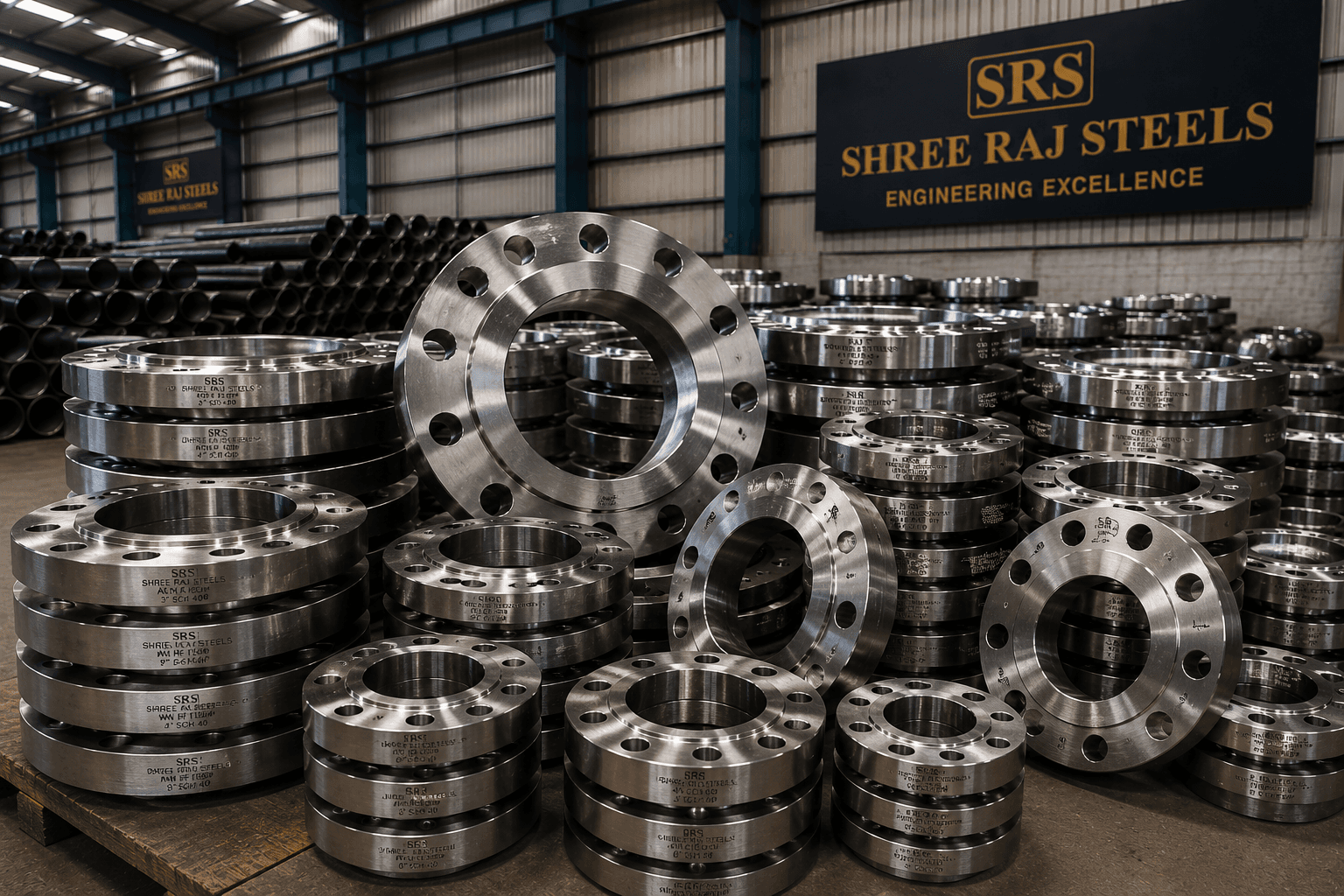

Flanges
Forged steel flanges in weld-neck, slip-on, blind, socket-weld, and plate configurations for Class 150 through 2500 and PN 2.5 through 400 pressure ratings. Shree Raj Steels provides flanges with American and European face-finish options, complete with EN/NACE compliance and material certificates.
Explore Available Types & Styles
Select a product classification below to view extensive technical parameters, available material grades, dimensions, and custom requests.

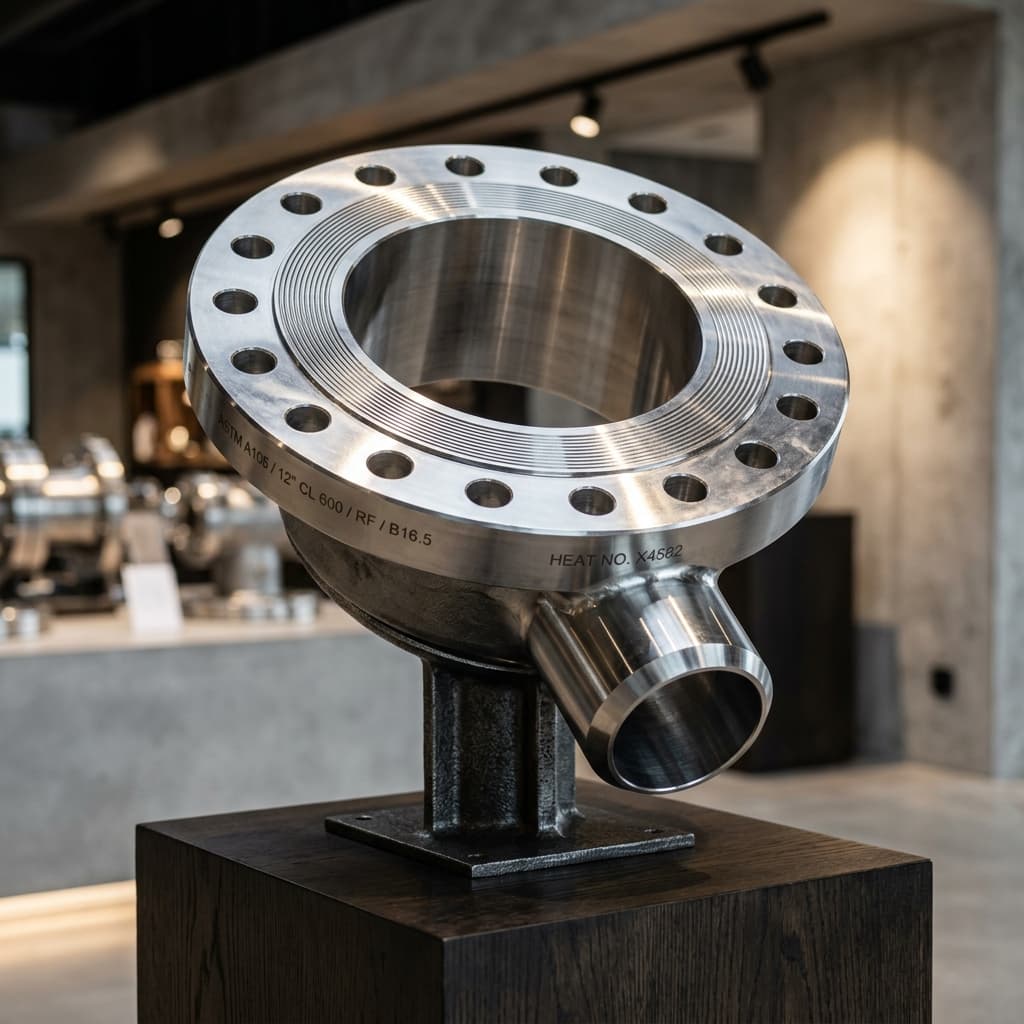

Weld Neck (WN) Flanges
Weld Neck flanges feature a long tapered hub that provides excellent stress distribution and is butt-welded to the pipe, making them the strongest and most reliable flange type. They are the preferred choice for high-pressure, high-temperature, and critical service applications where joint integrity is paramount.
Slip-On (SO) Flanges
Slip-On flanges slide over the pipe end and are fillet-welded on both sides, providing easy alignment and installation. While not as strong as Weld Neck flanges, they are cost-effective for moderate-pressure applications up to Class 600.
Blind Flanges
Blind flanges are solid discs used to seal the end of a piping system, valve, or pressure vessel opening. They are subject to the highest bending stresses of any flange type due to the lack of a supporting pipe hub.
Socket Weld (SW) Flanges
Socket Weld flanges have a recessed socket that receives the pipe end, then fillet-welded around the outside. They are designed for small-bore (NPS 1/2" to 4"), high-pressure piping where butt-weld preparation is impractical.
Plate (Flat) Flanges
Plate flanges, also called flat flanges, are simple disc-shaped flanges with a bolt circle and a central bore. They are the most basic and economical flange design, used for low-pressure, non-critical applications primarily in European piping systems.

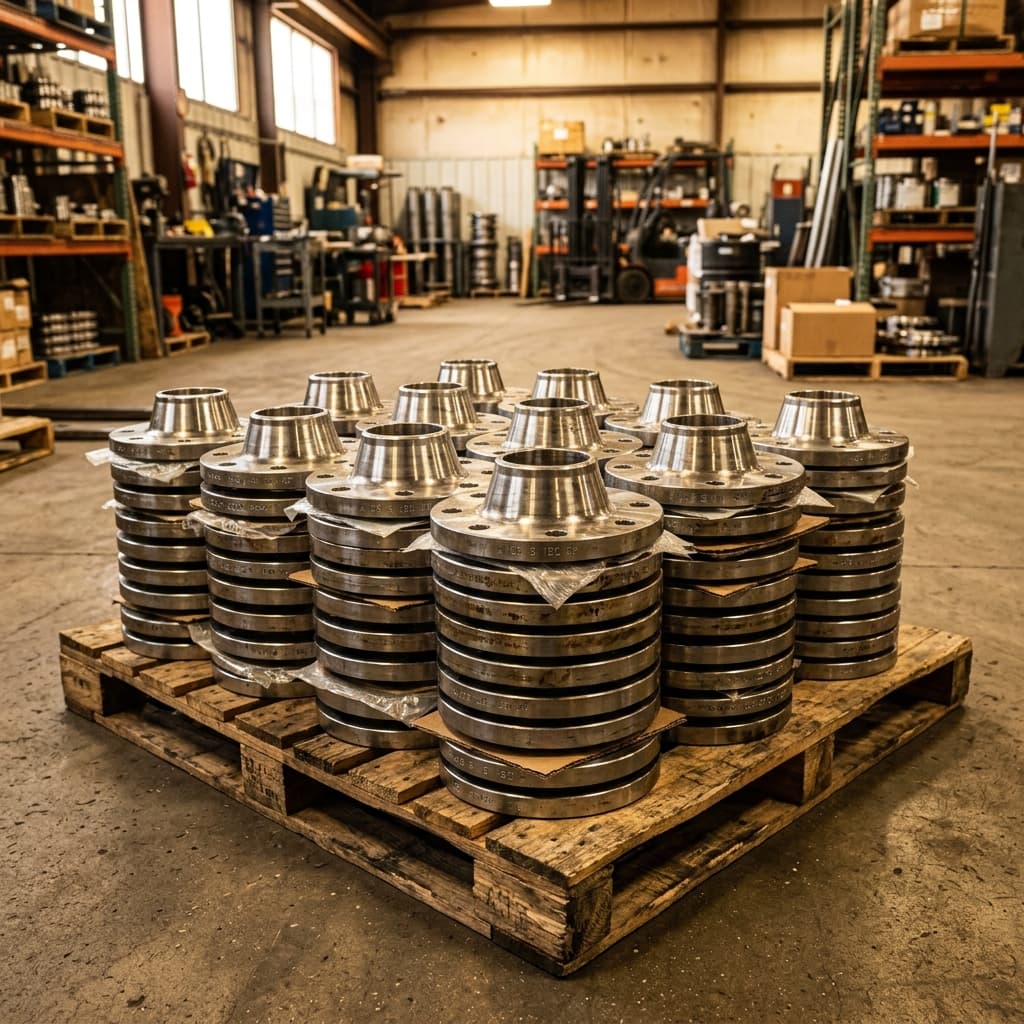

Lap Joint Flanges
Lap Joint flanges are used in conjunction with a stub end, where the flange slips over the pipe and the stub end is butt-welded to the pipe. This allows the flange to rotate freely for bolt alignment and enables easy dismantling.
Threaded Flanges
Threaded flanges connect to pipes via NPT or BSP threads, eliminating the need for welding. They are used in small-bore, low-to-moderate pressure applications and in situations where welding is not feasible (e.g., explosive atmospheres or existing lines).

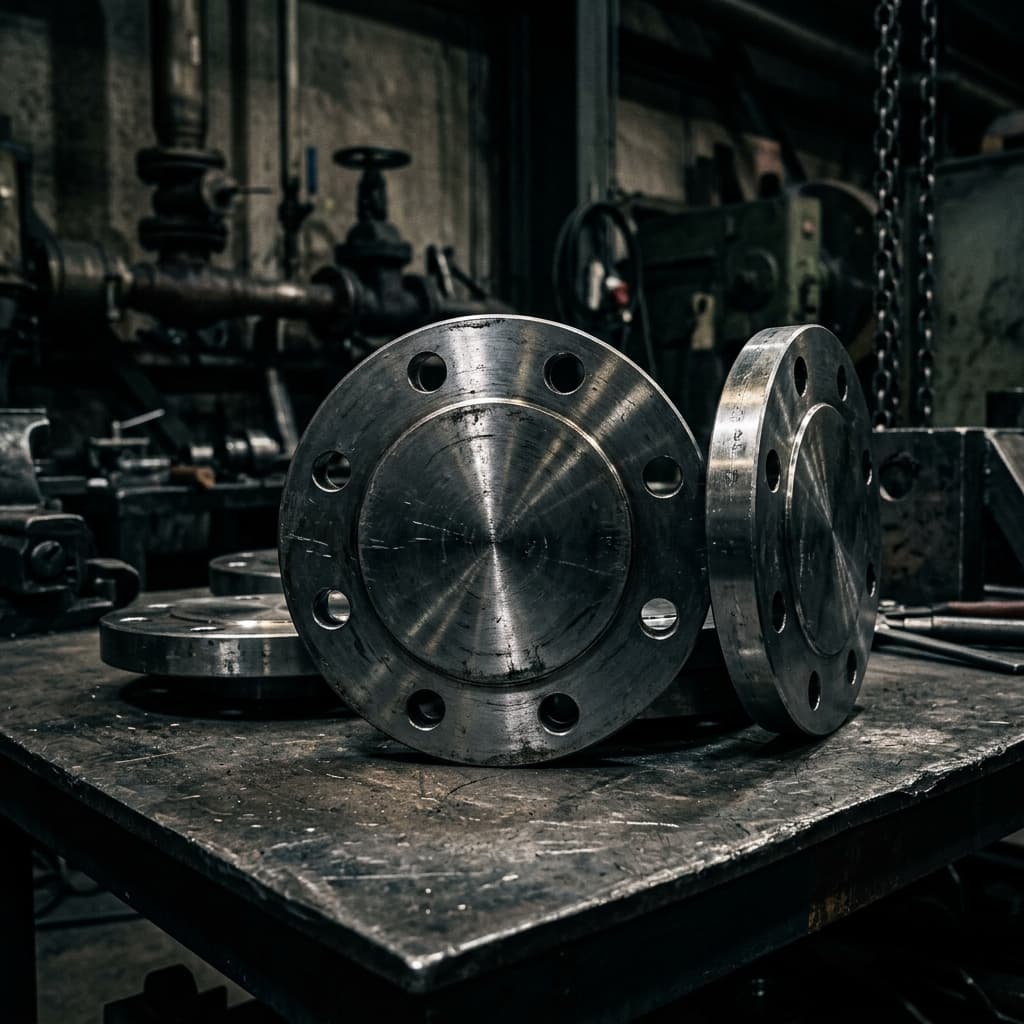

Spectacle Blind Flanges
Spectacle blind flanges, also called figure-8 blinds, consist of a solid disc (blind) and an open ring (spacer) connected by a tie bar. They are permanently installed in piping systems and rotated to either block or allow flow, providing a positive isolation method superior to valves.
Orifice Flanges
Orifice flanges are specialised flanges with radial tapped holes for connecting pressure sensing instruments to measure flow through an orifice plate. They are used in pairs at orifice metering stations for accurate flow measurement of liquids, gases, and steam.
Available Material Standards
Shree Raj Steels manufactures products in all major piping materials, certified with full chemical and mechanical reports, trace codes, and corrosion testing.
Carbon Steel
- ASTM A105
- ASTM A234
- S235JR (EN 10025)
Alloy Steel
- ASTM A182 F1
- ASTM A182 F5a
- ASTM A182 F9
- ASTM A182 F11
- ASTM A182 F12
- ASTM A182 F22
- ASTM A182 F91
Stainless Steel
- ASTM A182 F304
- ASTM A182 F304L
- ASTM A182 F316
- ASTM A182 F316L
- ASTM A182 F310S
- ASTM A182 F317
- ASTM A182 F347
- ASTM A182 F904L
Exotic & Alloys
- Monel 400 / K500
- Inconel 600 / 625 / 800 / 825
- Hastelloy C22 / C276 / B2
Technical Specifications
| Pressure Class (ASME) | Class 150, 300, 600, 900, 1500, 2500 |
|---|---|
| Pressure Rating (DIN/EN) | PN 2.5, 6, 10, 16, 25, 40, 63, 100, 160, 250, 400 |
| Face Finish (American) | RF (Raised Face), FF (Flat Face), T (Tongue), G (Groove), F (Female), M (Male), RJ (Ring Joint), RTJ (Ring Type Joint) |
| Face Finish (European) | Type A, Type B, Type C, Type D, Type E, Type F, Type G, Type H |
Product Scope
Surface Coatings
Manufacturing Standards
Inspection & Quality
We welcome all leading Third-Party Inspection (TPI) agencies including **SGS, TUV, LLOYDS, Bureau Veritas (BV), DNV, EIL, IRS, and IRS**.
Dimensions & Weights
Need standard chart sheets with dimensions, schedules, wall thicknesses and weights?
View Technical SheetsIndustrial Supply Experts Since 2019
Backed by over 40 years of collective industry experience in pipes and fittings, Shree Raj Steels (SRS) delivers reliable pipeline solutions worldwide. From standard oil-gas networks to complex chemical processes, our products withstand the test of extreme pressures and high corrosion.
PED 2014/68/EU Certified
Fully certified for pressure equipment systems, conforming to European safety guidelines.
1500+ Tons Ready Stock
Substantial raw materials (400+ tons) and finished product inventory ready for immediate shipment.
Pan-India & Global Delivery
Fast transport logistics from our Navi Mumbai hub directly to ports and industrial sites.
100% Traceability
Every single fitting is laser marked and traceable back to the raw material heat charge.
